NAMI off road Electric scooter – New Age Mobility Innovation

NAMI is a new brand of off road electric scooter in the high-end niche both in terms of performance but also components. Thanks to their experience acquired over the years, NAMI engineers have listened to users’ requests to deliver robust and efficient electric scooters to us, while eliminating the weak points of competitors in this same sector.

The Nami Burn-e is equipped with a large 72V 28Ah battery with standard capacity 18650 cells which are among the most efficient cells on the market.

Two powerful brushless motors of 1000W each for a total of 2000W, with a peak at 5040W, giving it a monstrous torque.

To slow down the 47kg of the Burn-e, Nami has chosen to equip its electric scooter with Logan 2 piston hydraulic disc brakes with 160mm disc, as well as the traditional electromagnetic brakes adjustable in intensity, which equip the majority of current electric scooters.

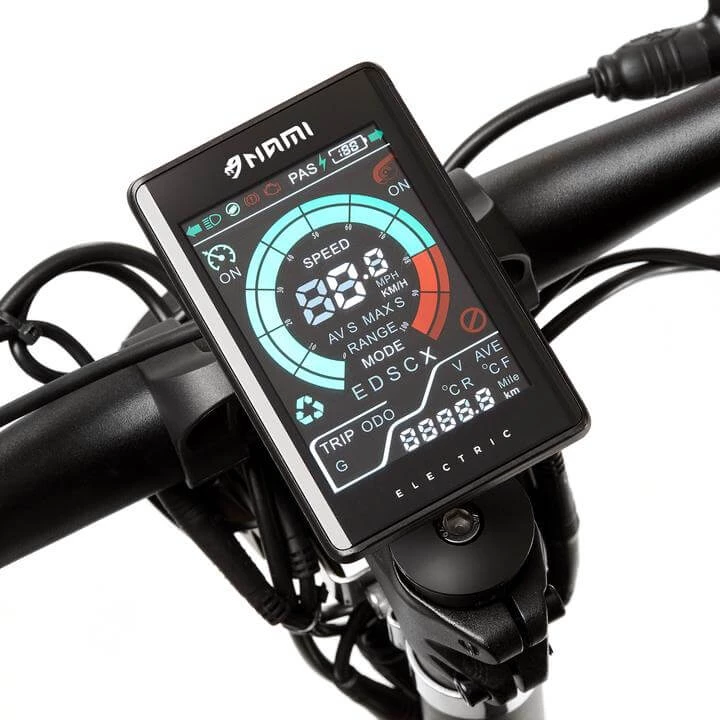

Nami innovates and installs a large waterproof colour display on the Viper Burn-e! 5 driving modes are available and, a great novelty, the settings of the two controllers is independent: you can therefore independently adjust the acceleration power of the front and rear motor, but also the intensity of the electric braking to establish a perfect balance between the ‘front and back and according to your preferences!

On the controller side, NAMI engineers have opted for 30 amp sine wave controllers, allowing the motors to be quieter.

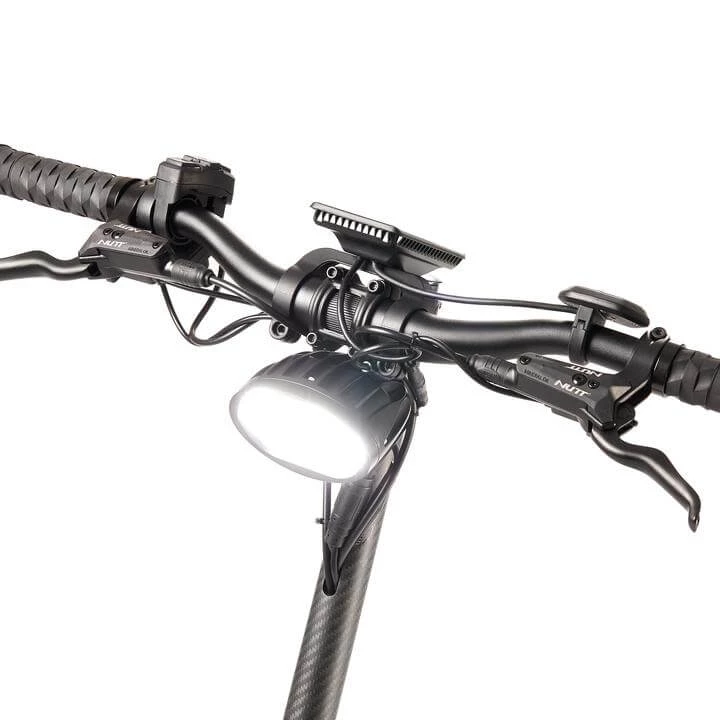

For driving comfort, the Burn-e electric scooter is equipped with two adjustable 165mm hydraulic coil suspensions. A powerful 2000 Lumen headlight is positioned on the upper part of the scooter, under the handlebars, for optimal lighting of your trajectory. A motorcycle-type horn, is fitted to the Nami Burn-E.

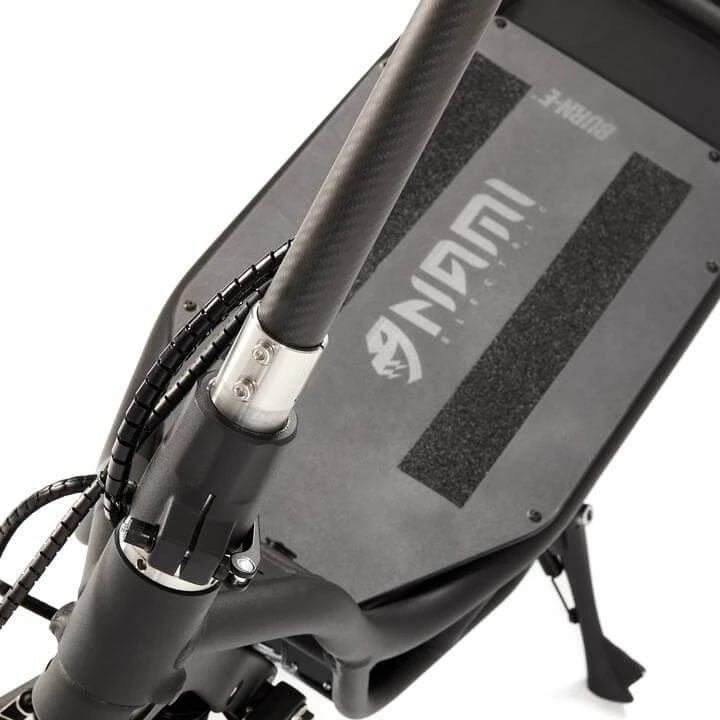

The steering column is entirely in carbon, the frame in 6082 aviation aluminium and the folding mechanism imagined by Nami is machined in type 304 stainless steel.

The Nami Burn-e is fitted with 90 / 65-6.5 road or off road tubeless tires on demand, on 11 inches rims.

Specs

Frame: One piece aviation grade aluminium welding frame, solution and aging heat treatment

Swing arm, front suspension holder, folding lock

One piece 6082 aviation aluminium forging

Battery: 72V 28AH 18650 2800mah standard capacity cell

Net Weight: 47 Kg

Max speed 25km/h (Private use 80 Km/h)

Range with average speed around 80km

Motors: 1000Wx2 with hall sensors, peak at 2520Wx2

Controllers: 6 mosfet, 30a max current controllers x2, sine wave, ip65, all waterproof connections

Dashboard:

5 riding modes, parameter settings for each controller is independent,

7 parameter settings under each of the riding modes are

1) Rear motor starting power, from 1 to 5

2) Front motor starting power, from 1 to 5

3) Rear motor max output, from 10 to 100 (percentage)

4) Front motor max output, from 10 to 100 (percentage)

5) Max speed, from 10 to 100 (percentage)

6) E-brake force, from 0 to 5

7) Turbo strength, from 0 to 5 (Turbo will add max speed and reduce the torque of the motor)

Smart cruise control, adjust the cruise speed by pressing the switch.

Over heat protection, able to set up the max temperature for the heat protection start, temperature in each controller can be checked any time.

Low voltage protection, able to set up the min power percentage for the low power protection start (ip65)

Brake: Front and Rear full hydraulic brakes with 160mm rotors, 4 piston brake.

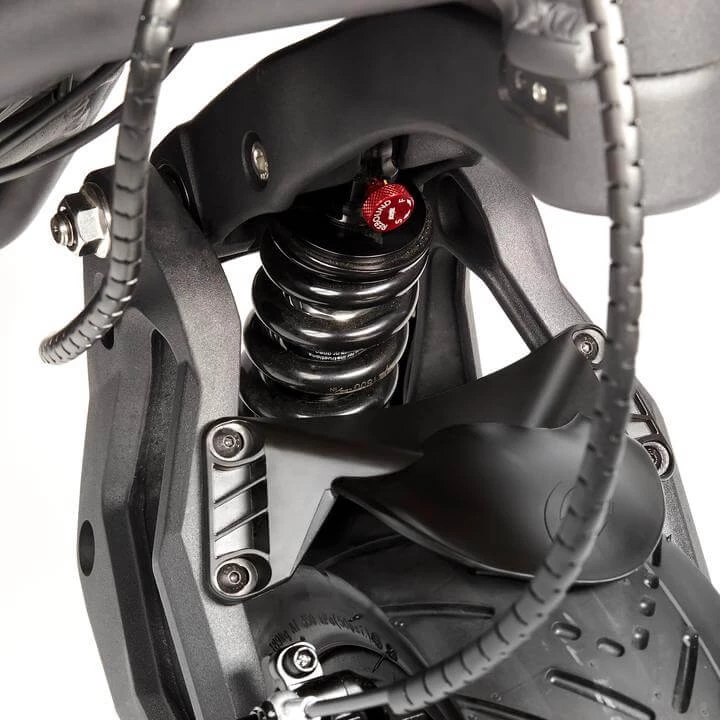

Suspension: 165mm length standard hydraulic coil shock with rebound adjustment.

Lights and Horn: 2000 lumen front led light, side LED strips integrated with turn signal, motorcycle horn, IP 55.

Cable system and IP rating: Quick connections for all electric components, for the cables close to handle bar and under the deck. Quick connector for the motor and controller IP 55 for the whole scooter.

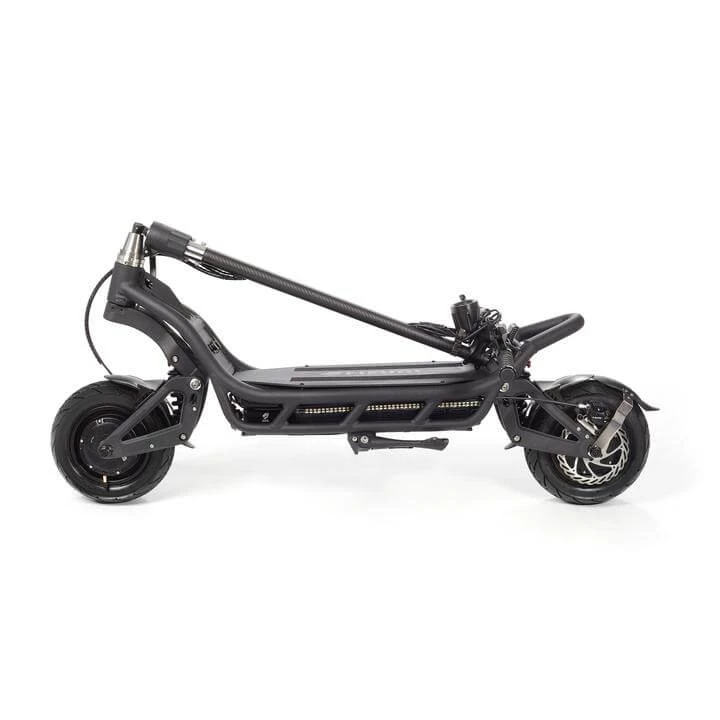

Folding System: Patent designed thread lock taper folding system, 304 stainless steel folding parts.

Handle bar and steering column: 31.8mm diameter, full carbon fibre steering column

Tyres: Tubeless 90/65-6.5, street or off road tires

Charger: Standard 1x 5a high quality quick charger, dual charging ports in the scooter

standard cylinder steering damper

Main dimensions (length x width x height):

Overall size: 1346mm x 620mm x 1446 mm Handle bar to deck, 1090mm in height Deck cover: 564x312mm, 766mm in length include rear foot rest Ground clearance: 150mm min Top of the deck to the ground 292mm.

Folding size (length x width x height): 1346mm x 620mm x 640mm

IMPORTANT NOTICE:

The laws around the use of scooters on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.
