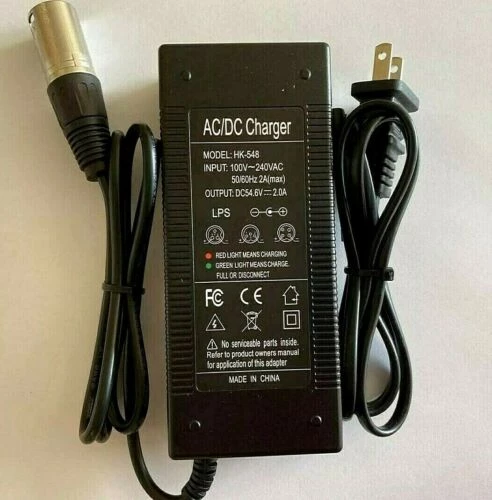

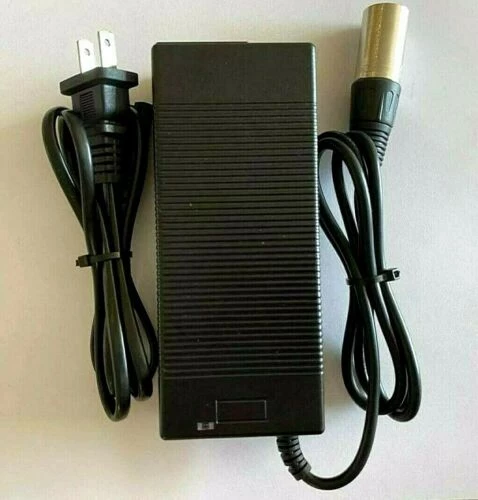

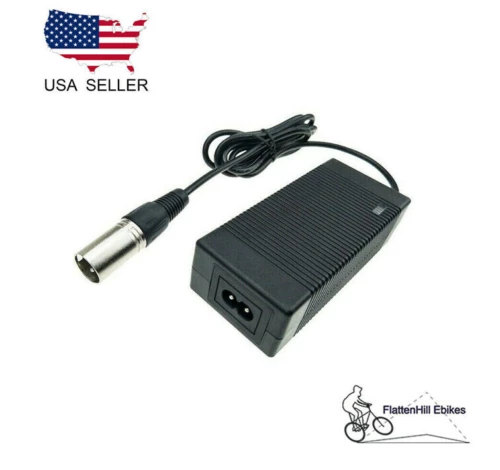

FlattenHill Electric Bike Ebike Scooter 48V Li-ion Battery Charger 3 Pin XLR Plug 54.6V 2A

Technical data

Input voltage: 100-240V AC

Max. output voltage: 54.6V

Max. output current: 2A

Max. Output power: 50W

Line frequency: 50-60Hz

Efficiency (at 100% load): >=85%

Ripple: <=1%*Vo



General specification

3-step charging control (pre-charge-CC-CV)

Option: a) NTC inside

             b) 100% cut off when battery fully charged

Dual color LED indicator: (Charging: Red; Fully charged or no load: Green)

High efficiency and low power waste



Environmental specification

Operating temperature: 0 – 45°C

Storage temperature: -20 – 70°C

Humidity < 65%



Protection

Over voltage protection

Over current protection

3 pin XLR plug (diamater 18mm, 0.7in) is commonly seen on such as Hailong2/3, Ecotric Hammer Electric Fat Tire, and Izip battery cases etc.  If your battery is a 48V lithium/li-ion battery, and our plug fits, this charger will perfectly work. You would just need to plug it into the wall and charge it as long as you like. Please pay special attention: some batteries have positive wire (red) on position 2, which is different from industrial default, and you would need to make a switch to make it work.
