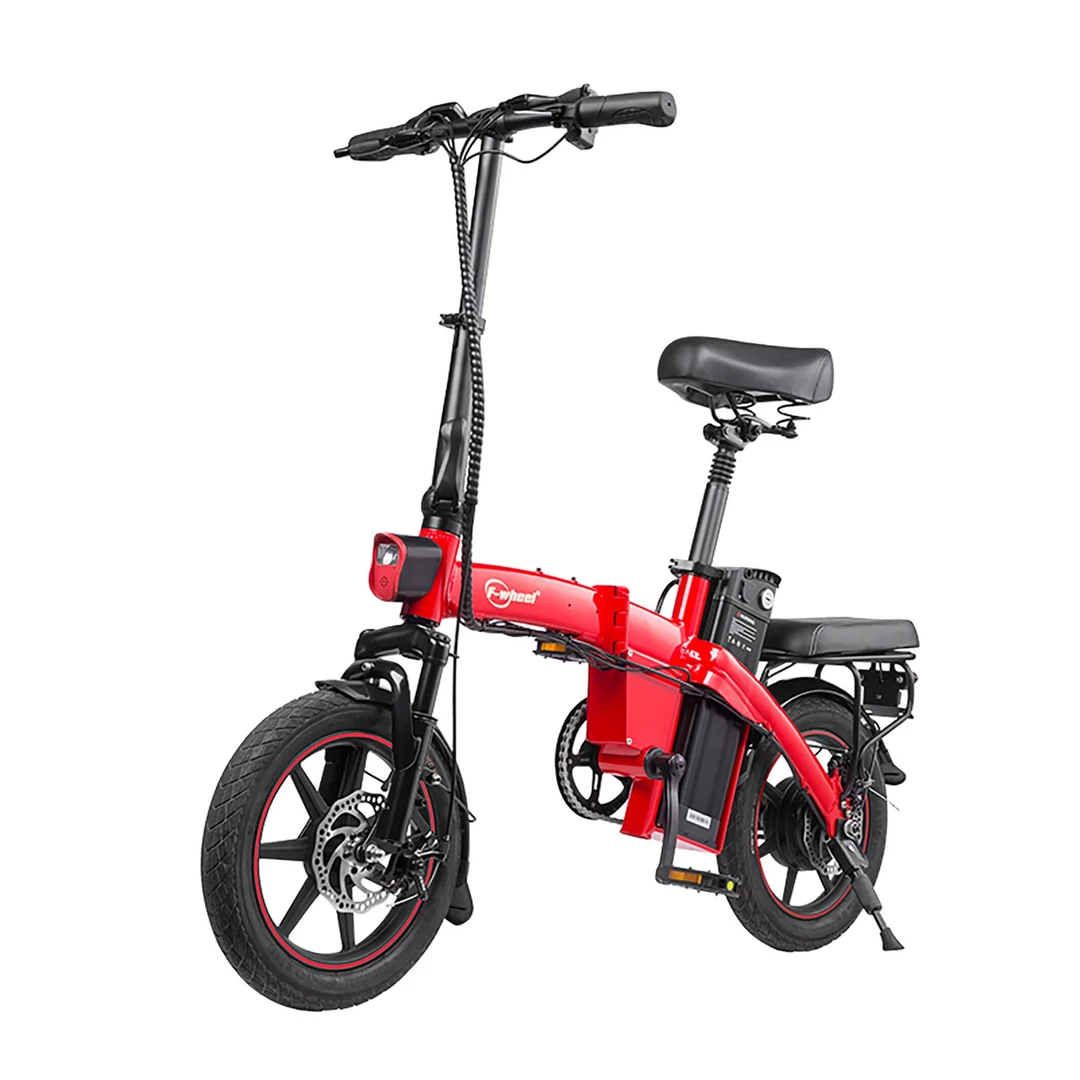

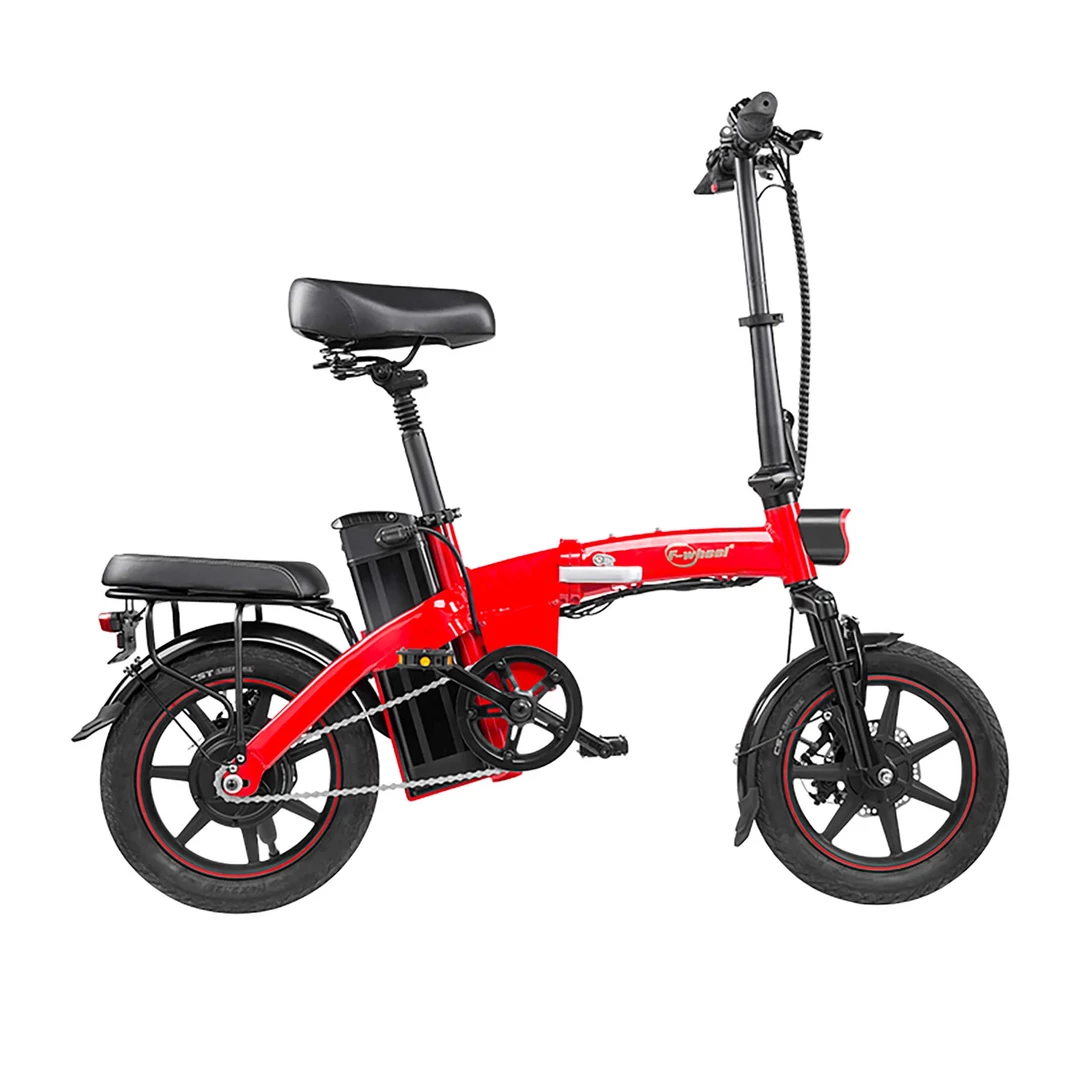

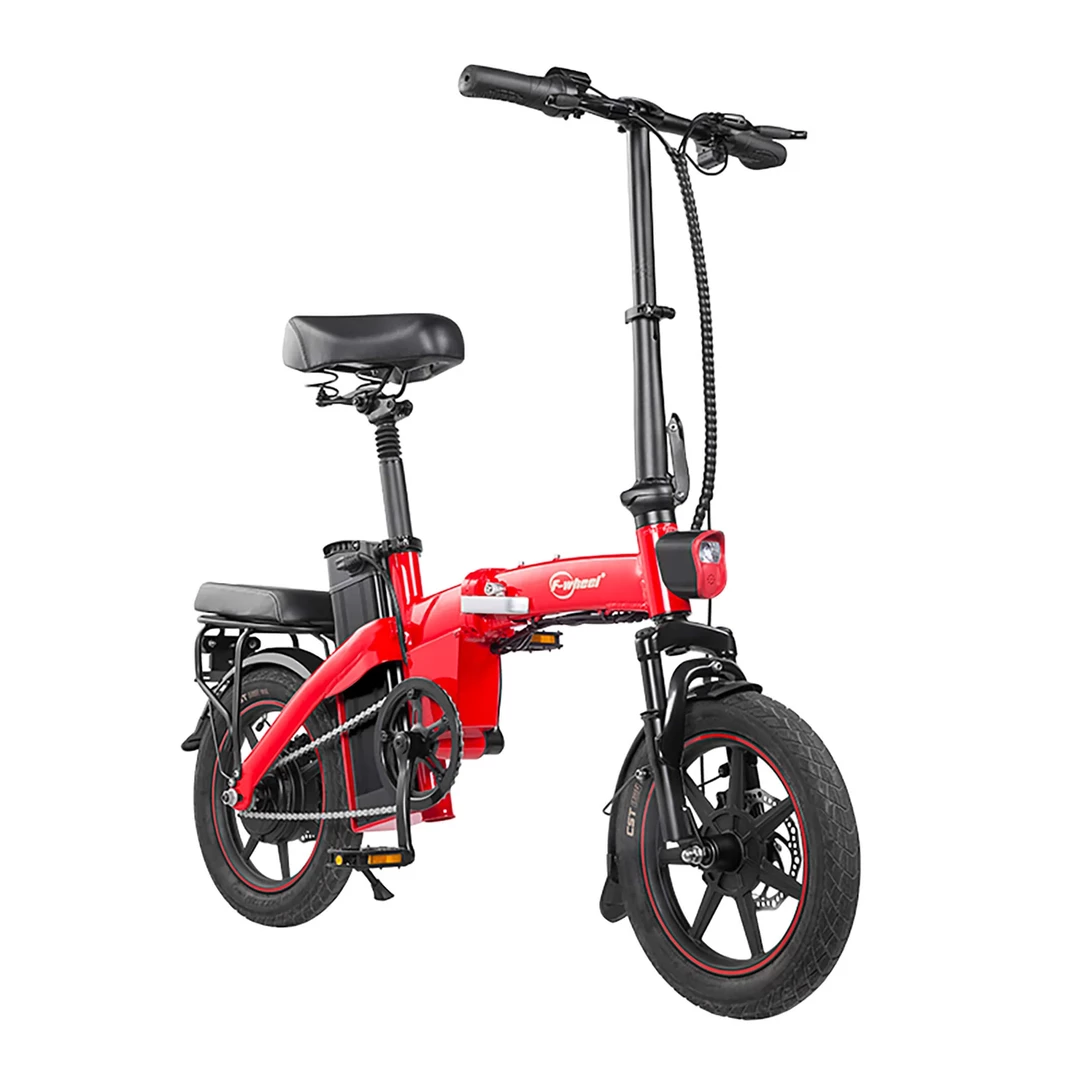

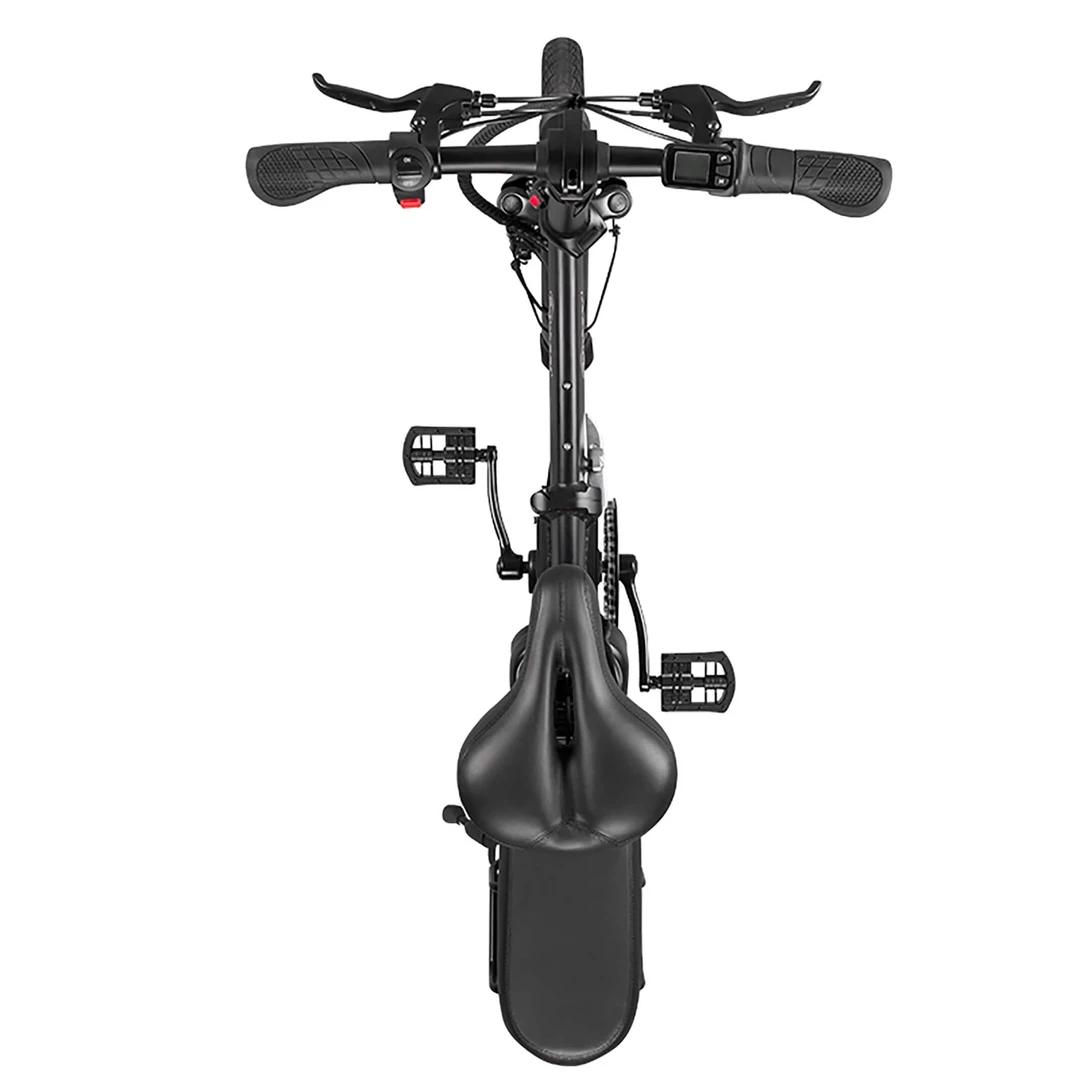

Dyu A5 Smart Electric Bike

The DYU A5 Smart Electric Bike is built on a larger ultra light aluminium alloy frame with a weight capacity of 150kg and a 3 stage ultra compact folding ability. The A5 is equipped with a convenient removable lithium battery for easy fast charging.

Your daily commute is made easy with a powerful 350W high speed brushless electric motor combined with the 3 Mode DTST Smart Power you can ride pure electric, pedal assisted or pedal only. The A5 Also features a comfortable shock absorbing seat as well as front shock absorbers to give you a smooth comfortable ride.

The A5 is the only DYU Electric Bike with 3 Stage Folding ability by being able to lower the seat, fold over the handlebars and then literally fold the bike in half! This gives you ultra compact storage for travelling long distance in a car or storing in the home/office.

All DYU Electric Bikes are ultra-quiet, compact, powerful, easy to use and come with a 1 year Warranty giving you an easy choice when it comes to personal electric transport.

Features:

Wheel Size
Larger 14inch wheels

Lightweight Frame
Weighing a total of 22.5Kg
Strong Aluminium Alloy

7.5Ah Lithium Battery
40 Km Distance
Up to 25KM P/Hour

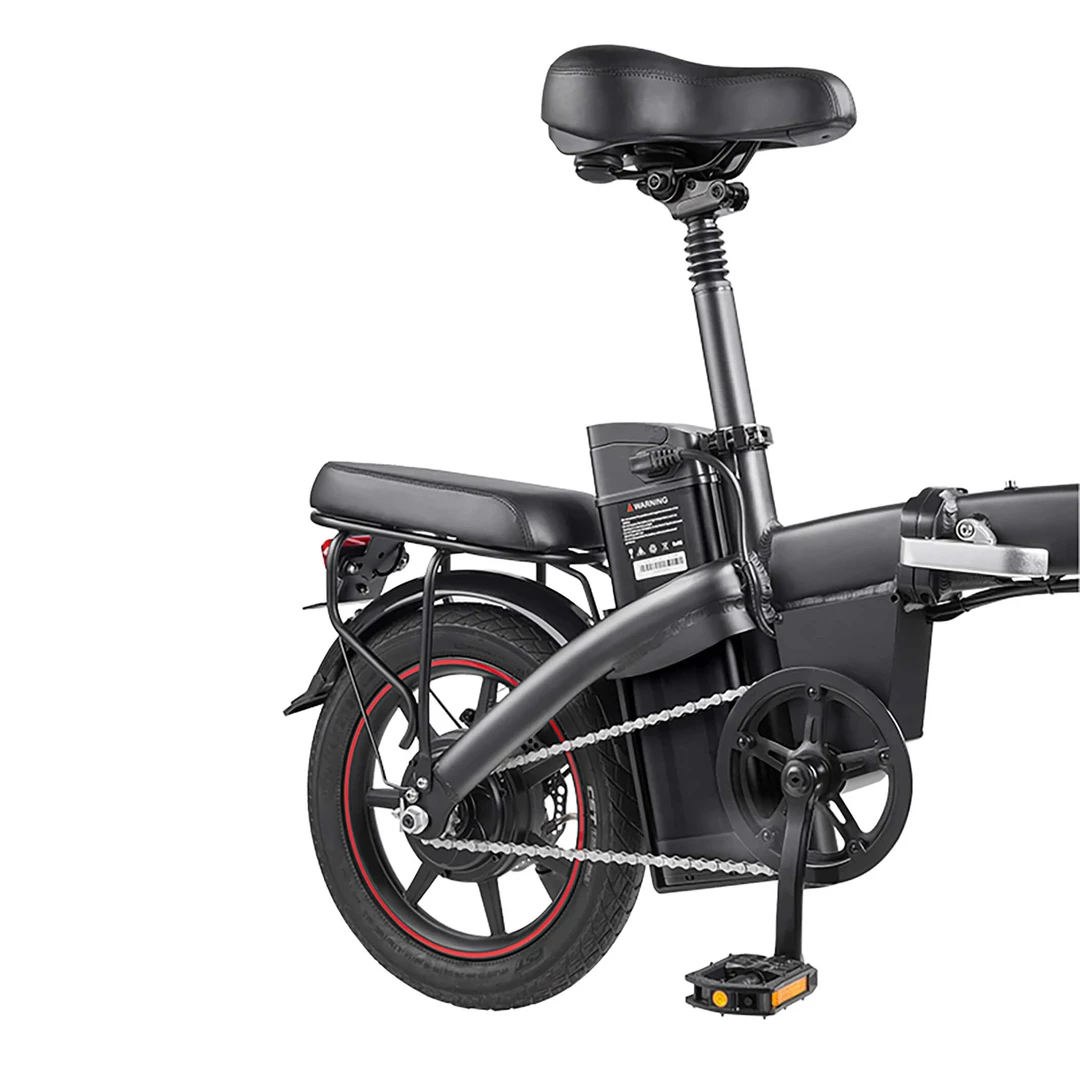

Removable Battery

3 Mode DTST Smart Power System
Mode 1. Pure Electricity Mode
– Uses only the battery to travel on the bike.
Mode 2. Assisting Mode
– Pedal assist gives you easy riding and smooth climbing.
Mode 3. Riding Mode
– Full pedal is like a normal bicycle with no battery usage.

Multi Shock Mitigation System
Shock Absorbing seat
Front Fork Shock Absorbers

3 Stage Folding System
Ultra compact folding in 3 stages to a size of 73 x 65 x 33cm

Intelligent Bike Lights
Safe for night riding
Adjustable lights mode

A5 SPECIFICATIONS

Wheel size	14 inch

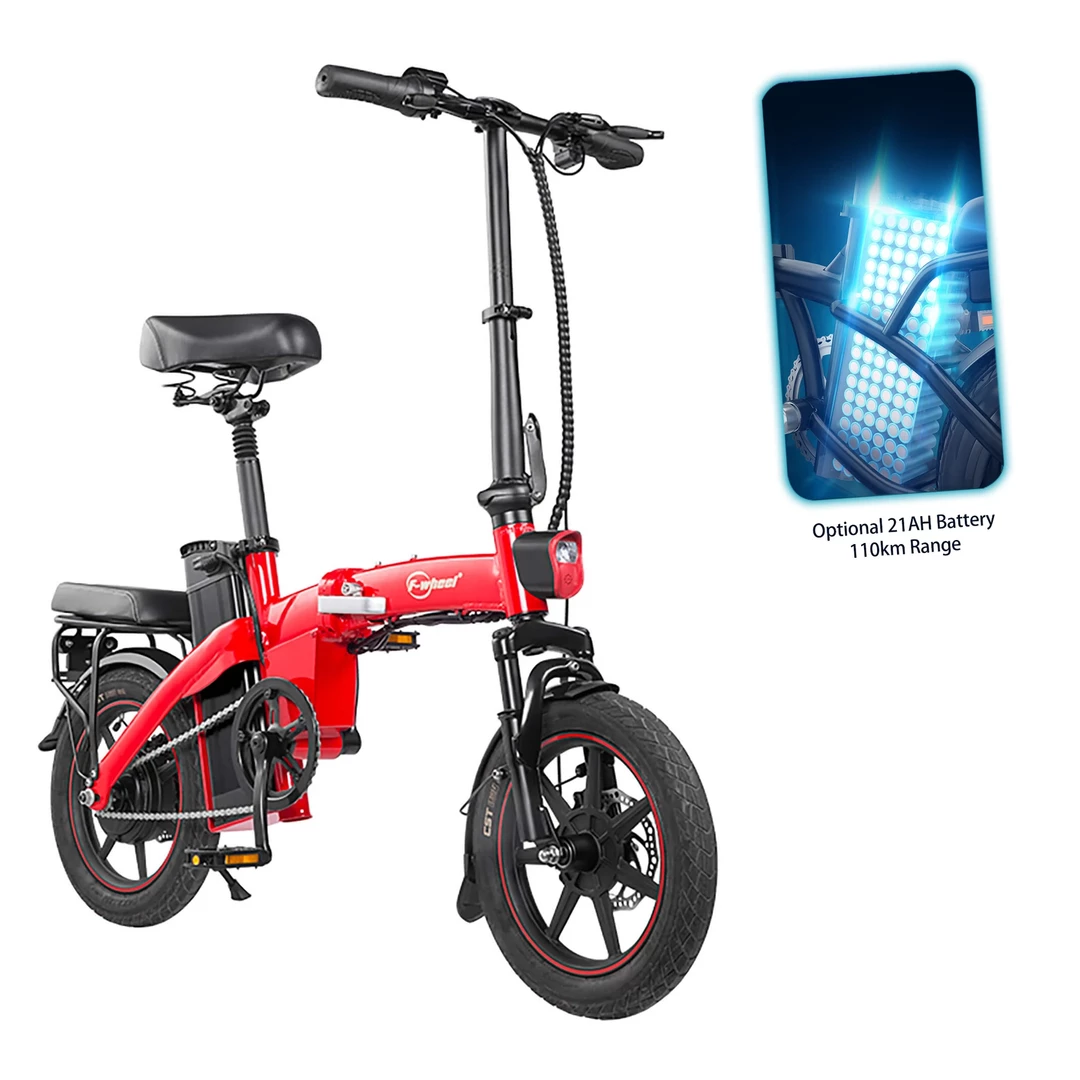

Travelling Range	110km
Max Speed.	25KM/H
Max. Distance	Approx. 40KM
Max Load Capacity	150KG
Gradability	20°
Turning Ability	65°
Material	Aluminum Alloy
Foldability	YES
Front Brake	YES
Rear Brake	YES
Stand	YES
Horn	YES
Front Light	YES
Rear Light	YES
Adjustable seat	YES
Smart APP Control	NO
Pedals Assisted	YES
Auto Cruise	YES
Battery Display	YES
Speed Display	YES
Suspension	YES
Battery type	Lithium battery
Battery Capacity	7.5AH
Battery charging time	4 Hours
Motor Power	350W 48V
Body size (Unfolded)	126 x 52 x 102cm
Box size	125 x 23 x 65cm
Net Weight	22.5KG
Gross Weight	25KG

Measurements

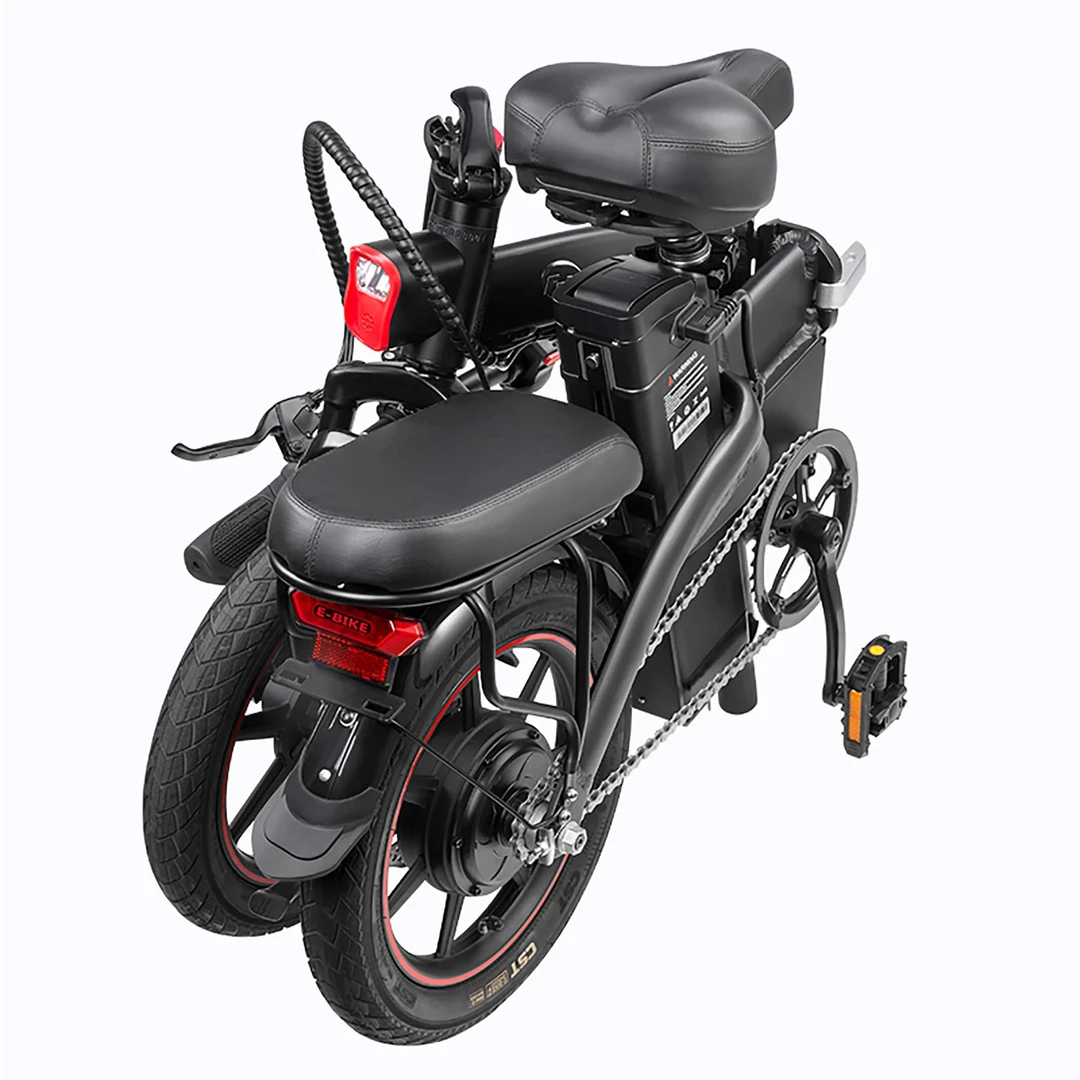

3-Step Folding

A unique feature of the A5 is that is ultra compact what wanting to store it. With our 3-Step Fast Folding save time and space. Simple and quick, you can. easily store the A5 in a car boot or at home and the office.

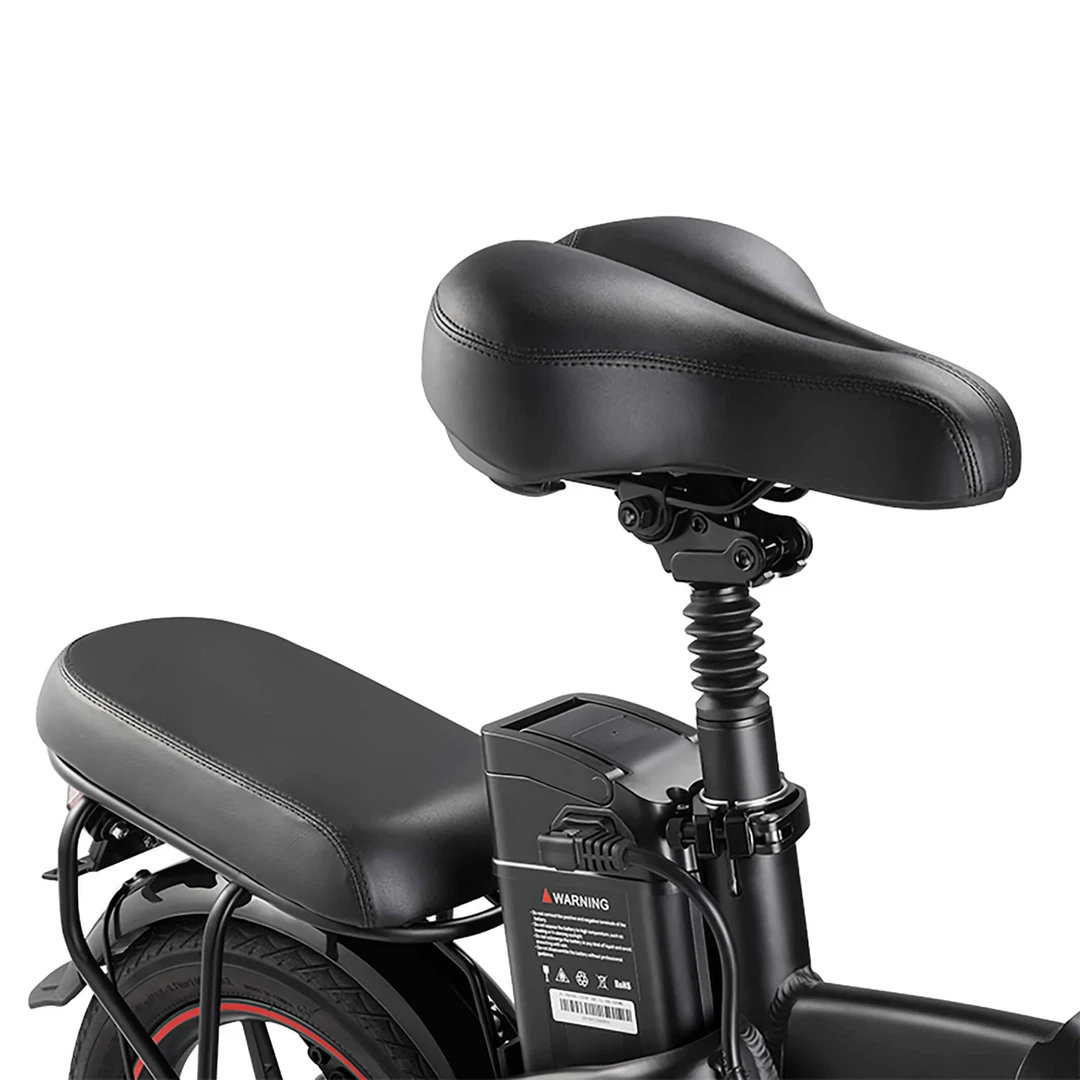

SEAT SUSPENSION

The A5 Electric Bike is equipped with an extremely comfortable seat with shock absorbing seat suspension that will ease bumps on uneven road surfaces giving you a more enjoyable ride.

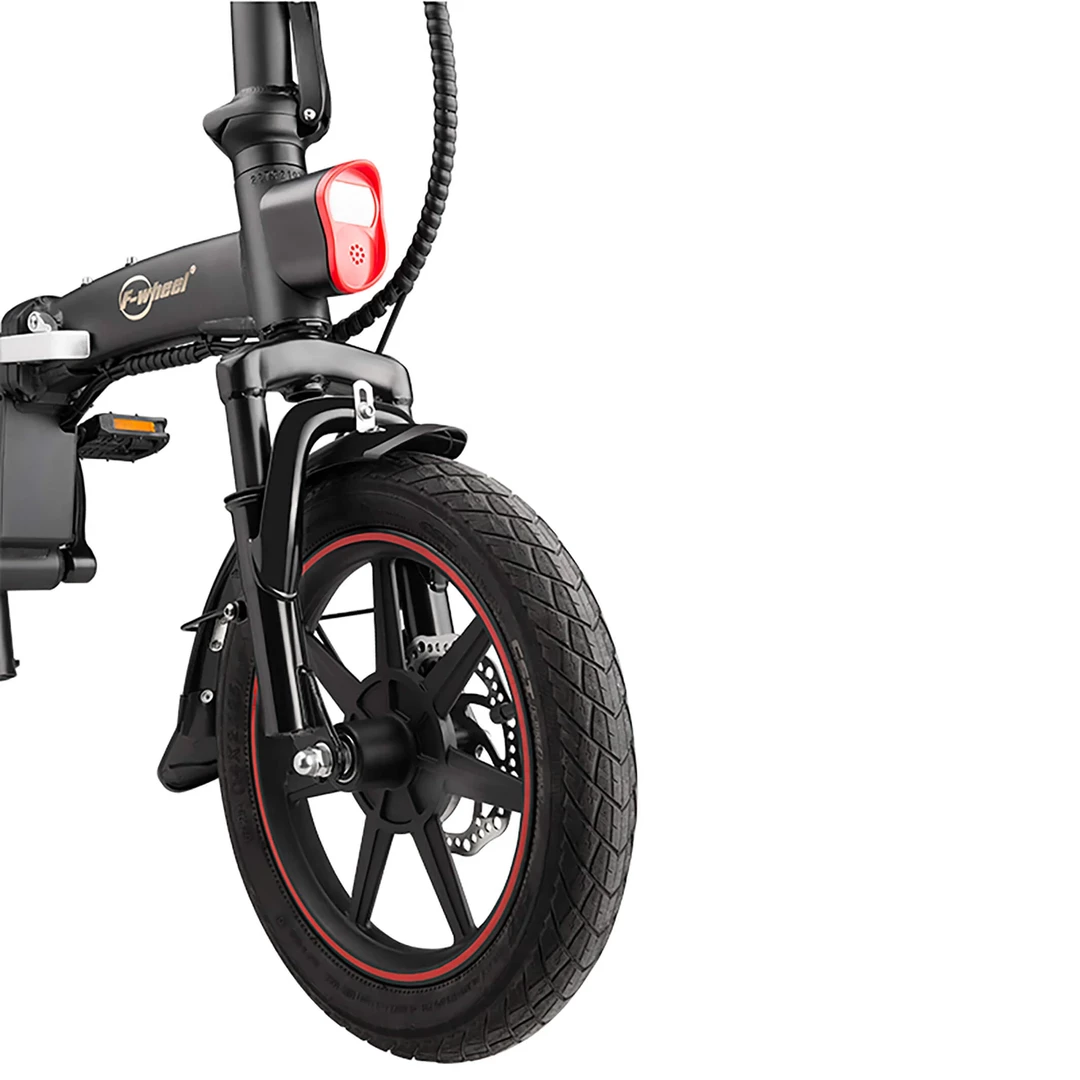

FRONT SHOCK ABSORBERS

Fitted with front fork shock absorbers, the A5 gives you a more comfortable riding experience, easily smoothing out out bumps and giving you a safer ride as well.

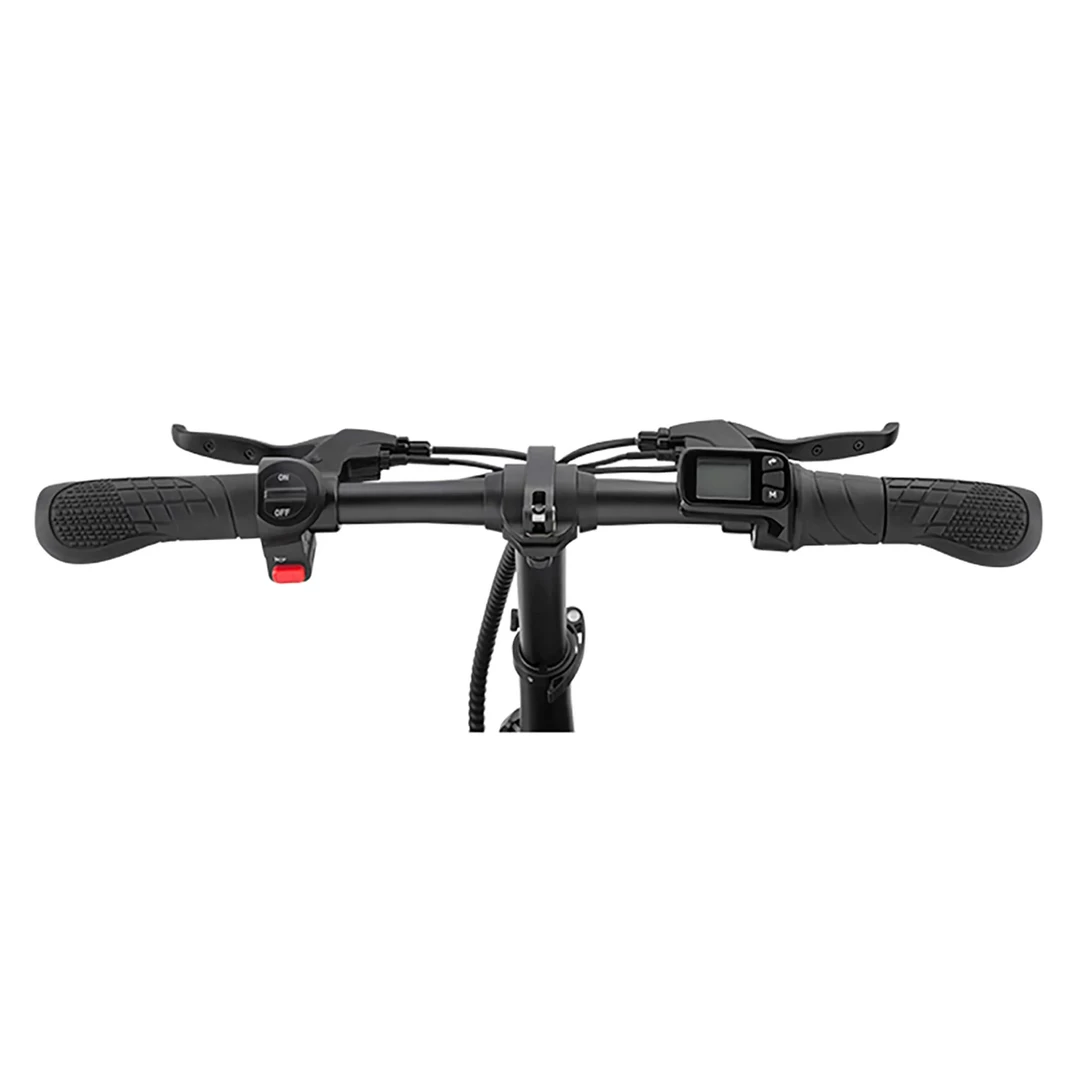

LCD DISPLAY

The A5 Smart Electric Bike comes with an ultra-clear LCD display on the handlebars. Stay on top of your ride with Speed Display, Voltage Display, Gear Adjustment, Distance Travelled and more in real-time get feedback from the bike so you know the situation at all times while you ride.

Ultra light frame

The uniquely designed A5 frame is strong and durable. Weighing in at only 18kg the frame is made from corrosion Aluminium Alloy and has a 3 stage folding system to make the A5 extremely compact when storing.
